Type
CMOS sensor (supporting Dual Pixel CMOS AF)
Pixels
Effective pixels: Approx. 24.2* megapixels
Total pixels: Approx. 25.8* megapixels
* Rounded to the nearest 100,000.
Pixel Unit
Approx. 3.72µm square
Aspect Ratio
3:2 (Horizontal : Vertical)
Color Filter System
RGB primary color filters
Low Pass Filter
Installed in front of the image sensor, non-detachable
Dust Deletion Feature
(1) Self Cleaning Sensor Unit
Removes dust adhering to the low-pass filter.
Self-cleaning executed automatically (taking approx. 2 sec.) when power is turned on or off. Manual execution also possible (taking approx. 5 sec.).
After the cleaning is performed, the camera will automatically restart (power OFF to ON).
(2) Dust Delete Data acquisition and appending
The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
The dust coordinate data appended to the image is used by the provided software to automatically erase the dust spots.
PRODUCT INFORMATION VIEW MORE DETAILSFIND A DEALER

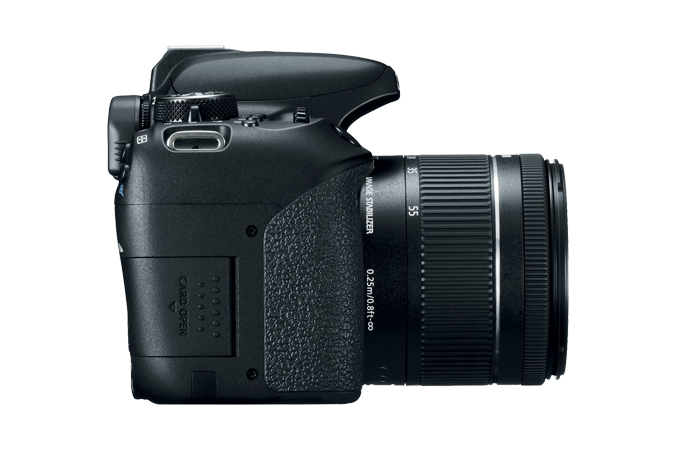

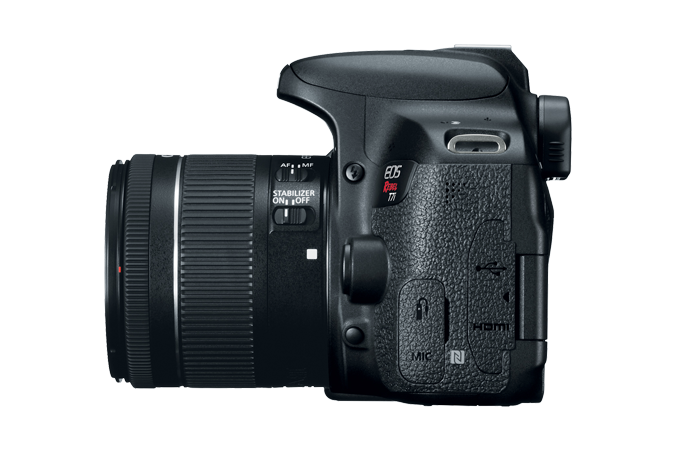

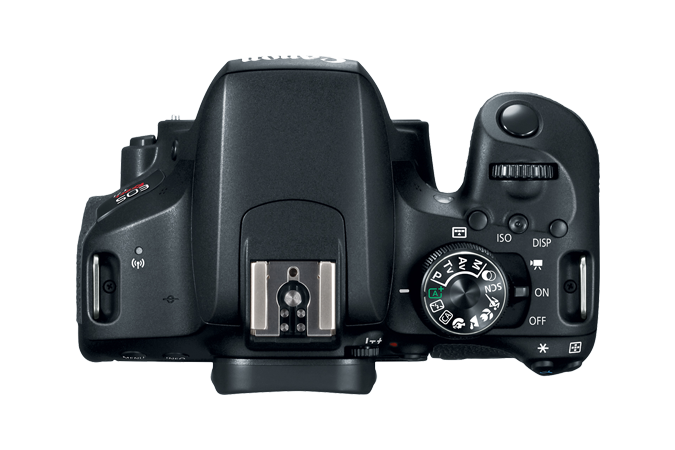

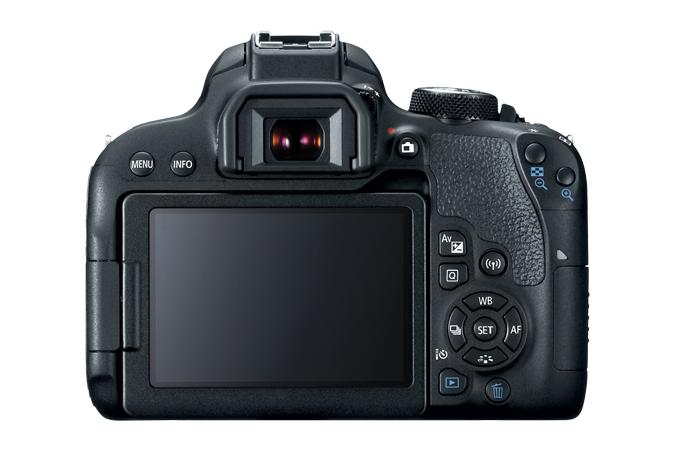

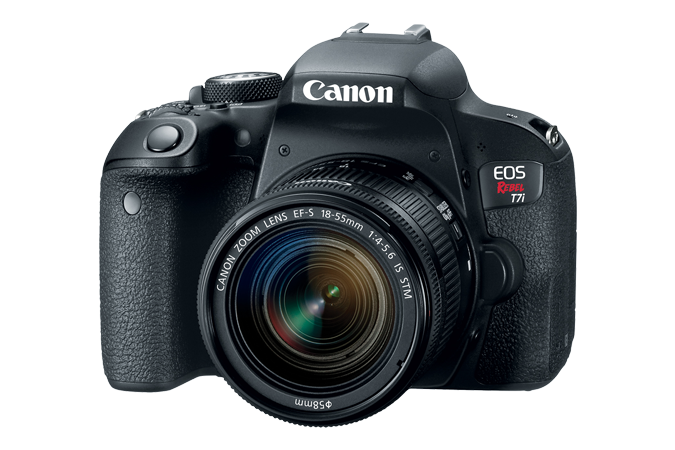

EOS Rebel T7i EF-S 18-55mm IS STM Lens Kit
- DRIVERS & DOWNLOADS
- MANUALS
Contact Support
1-800-OK-CANON (1-800-652-2666)Monday-Friday: 9:00 am to 9:00 pm ET, Saturday: 9:00 am to 7:00 pm ET, excluding holidays
All times ET, excluding holidays.EMAIL SUPPORT
Want to register this product?REGISTER PRODUCT
Purchase and register select products and receive 13 months FREE accidental damage protection. OFFER ENDS JUNE 29, 2019.
EOS Rebel T7i EF-S 18-55mm IS STM Lens Kit
- Specifications
- Drivers & Downloads
- Manuals
- FAQs
- Product Advisories
- Warranty
- Supplies & Accessories
- What's in the Box
- Software Development Kit (SDK)
Type
Digital AF/AE single-lens reflex camera with built-in flash
Recording Media
SD/SDHC/SDXC memory cards
SD speed class-compatible UHS-I compatible High-speed writing is supported when a UHS-I compatible SD card is used. Compatible with Eye-Fi Cards. Multimedia cards (MMC) cannot be used (card error will be displayed).
Image Format
Approx. 22.3mm x 14.9mm (APS-C Size)
Compatible Lenses
Canon EF lenses (including EF-S lenses, excluding EF-M lenses)
Lens Mount
Canon EF mount
View Full Specifications
Image Sensor
Type
CMOS sensor (supporting Dual Pixel CMOS AF)
Pixels
Effective pixels: Approx. 24.2* megapixels
Total pixels: Approx. 25.8* megapixels
* Rounded to the nearest 100,000.
Pixel Unit
Approx. 3.72µm square
Aspect Ratio
3:2 (Horizontal : Vertical)
Color Filter System
RGB primary color filters
Low Pass Filter
Installed in front of the image sensor, non-detachable
Dust Deletion Feature
(1) Self Cleaning Sensor Unit
Removes dust adhering to the low-pass filter.
Self-cleaning executed automatically (taking approx. 2 sec.) when power is turned on or off. Manual execution also possible (taking approx. 5 sec.).
After the cleaning is performed, the camera will automatically restart (power OFF to ON).
(2) Dust Delete Data acquisition and appending
The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
The dust coordinate data appended to the image is used by the provided software to automatically erase the dust spots.
(3) Manual cleaning
Recording System
Recording Format
Complies with Design rule for Camera File system 2.0 and Exif 2.3
File Size
3:2 Aspect Ratio
Large: 6000 x 4000
Medium: 3984 x 2656
Small 1: 2976 x 1984
Small 2: 2400 x 1600
RAW: 6000 x 4000
4:3 Aspect Ratio
Large: 5328 x 4000
Medium: 3552 x 2664
Small 1: 2656 x 1992
Small 2: 2112 x 1600
RAW: 6000 x 4000
16:9 Aspect Ratio
Large: 6000 x 3368
Medium: 3984 x 2240
Small 1: 2976 x 1680
Small 2: 2400 x 1344
RAW: 6000 x 4000
1:1 Aspect Ratio
Large: 4000 x 4000
Medium: 2656 x 2656
Small 1: 1984 x 1984
Small 2: 1600 x 1600
RAW: 6000 x 4000
Backup Recording
N/A
File Numbering
The following three types of file numbering method can be set:
(1) File numbering method
Continuous numbering The numbering of captured images will continue even after you replace the camera's card. Auto reset When you replace the camera's card, the numbering will be reset to start from 0001. If the new card already contains images, the numbering will continue from the last recorded image in the card. (2) Manual reset Resets the file number to 0001, and creates a new folder automatically.
RAW + JPEG Simultaneous Recording
Simultaneous recording is possible using a combination of RAW and JPEG (Large).
Color Space
sRGB, Adobe RGB
Picture Style
(1) Auto
(2) Standard
(3) Portrait
(4) Landscape
(5) Fine Detail
(6) Neutral
(7) Faithful
(8) Monochrome
(9) User Def. 1-3In Basic Zone modes, [Auto] will be set for and of the mode, and [Standard] will be set for other modes. In Creative Zone modes, you can select or set the Picture Style.[Auto] is the default setting for [User Def. 1-3].
